ManufacturerBoeing Commercial Airplanes

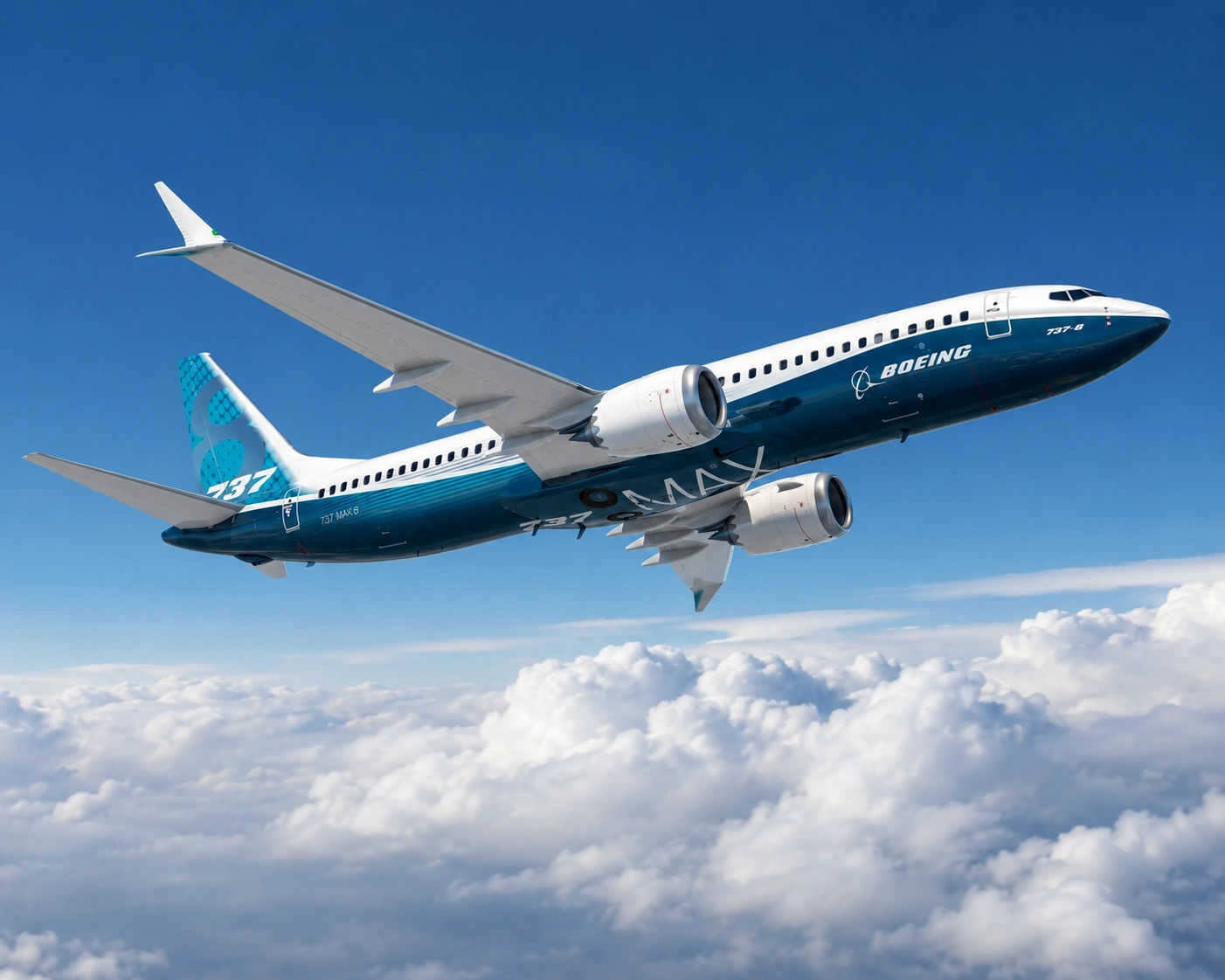

Variant Shown737-8 (737 MAX 8)
Family737 MAX (737-7 / -8 / -9 / -10)
First Flight / Introduction737 MAX family first flew in 2016; 737-8 entered service in 2017
Entry Into Service2017
Body TypeSingle-aisle narrow-body jet
RoleShort / medium-haul commercial transport
Length39.5 m
Height12.3 m
Wingspan35.9 m
Fuselage Width3.76 m maximum exterior width
Wing Area127.0 m² (approx.)
MTOW82.645 t
MLW69.308 t
MZFW65.952 t
Fuel Capacity~25,941 L
MMOM0.82
Cruise SpeedMach 0.785
RangeUp to 3,500 nmi
Max Seating210 PAX
Service Ceiling41,000 ft
Takeoff Field LengthConfiguration / operating-condition dependent
Flight Crew2 pilots
Cabin CrewConfiguration-dependent
PropulsionTwin high-bypass turbofan
Engine Options2 × CFM International LEAP-1B
Aircraft DeliveredIn active commercial service worldwide
Main CompetitorAirbus A320neo family
Notable OperatorsAirlines worldwide; specific fleets vary by operator
Four large 15-inch displays; modernized 737 MAX avionics.
CFM LEAP-1B high-bypass turbofan.
Advanced Technology winglets with natural-laminar-flow features.
787-inspired nacelle integration and redesigned aft body.
High family commonality across pilots, mechanics, maintenance and spares.
